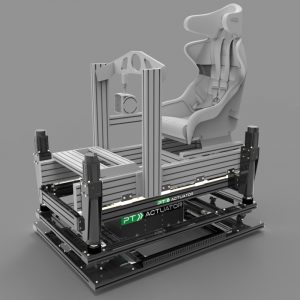

Platform with Surge and 4 actuators

13.999,00 €

(Payload 300kgs for the weight of person, cockpit, rig, pedal, and other accessories)

1 set of AMC-AASD controller
4 set of shield AASD15A servo driver (flange size 80 with 750w)
1 set of shield AASD15A servo driver (flange size 60 with 600w)

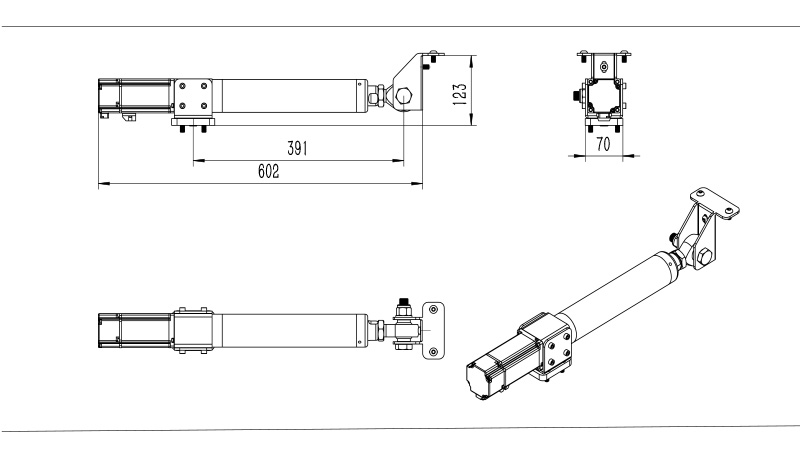

1 set of servo actuator ( speed:250mm/s,force:80kg,stroke/150mm) for Surge

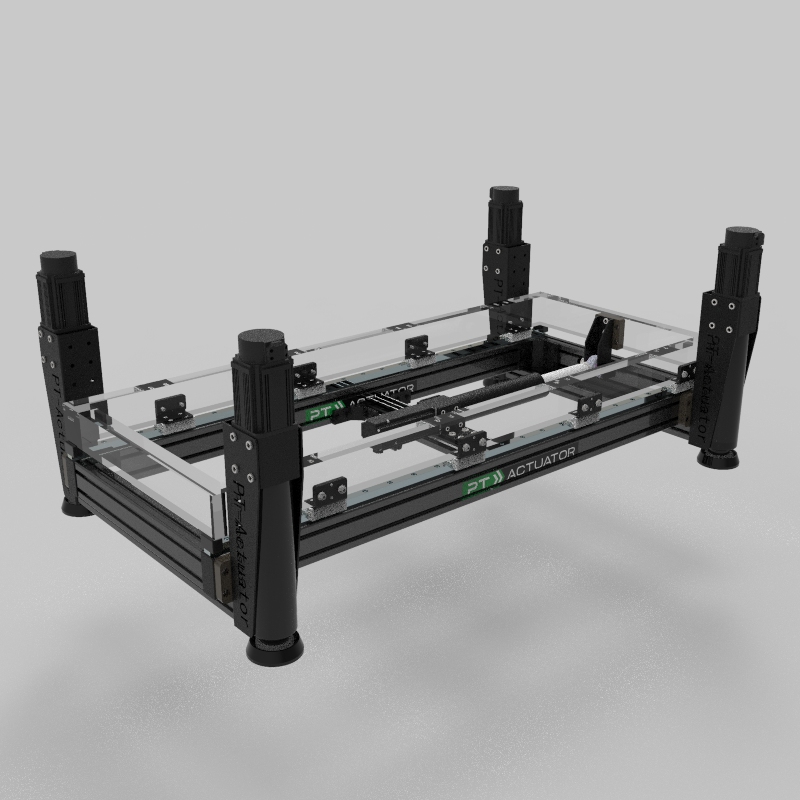

1 set of motion frames(Aluminum profile+Metal structure)
Support for profiles model 40/40, 40/80, 40/160
2 set of sliding rails with sliders
1 set of brackets for Surge
4 set of Scorpion servo actuators ( speed:250mm/s,force:200kg,stroke/150mm)perpendicular

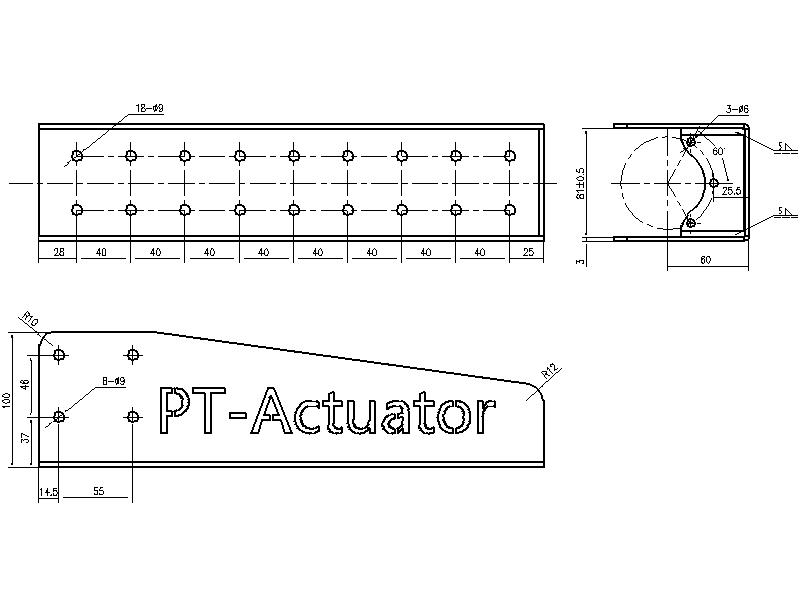

4 set of Scorpion U brackets adding Surge brackets
4 set of metal plate cups
5 set of power and encoder cables (3meters long)
Sim-Motion software for private usage
SimTools compatible
Shipping from Germany

4 weeks delivery time

Additional information

Weight	70 kg

13.999,00 €

(Nutzlast 300 kg)

1 Stück AMC-AASD Controller
1 Stück AASD15A Servo Driver (flange size 60 mit 600w)
4 Stück AASD15A Servo Driver (flange size 80 mit 600w)
1 Stück Servo Actuator ( speed:250mm/s,force:80kg,stroke/150mm) für Surge
1 Stück Aluminum Profile + Metall Parts
Support für folgende Aluprofile 40/40, 40/80, 40/120 40/160
2 Stück Gleitschienen mit Slidern
1 Stück Halterung für Surge
4 Stück Scorpion Servo Aktuatoren( speed:250mm/s,force:200kg,stroke/150mm)perpendicular
4 Stück Scorpion U Brackets und Surge Brackets
4 Stück Bodenschalen
5 Stück Strom- und Encoder Kabel (3 meter lang)

4 – 6 Wochen Lieferzeit

Weight	70 kg
